Model : LC-38-INT
Keyword :High reflectivity Leaf transmittance Crop leaf transmission spectrum
400-820-7939
Technical Support：021-50687686

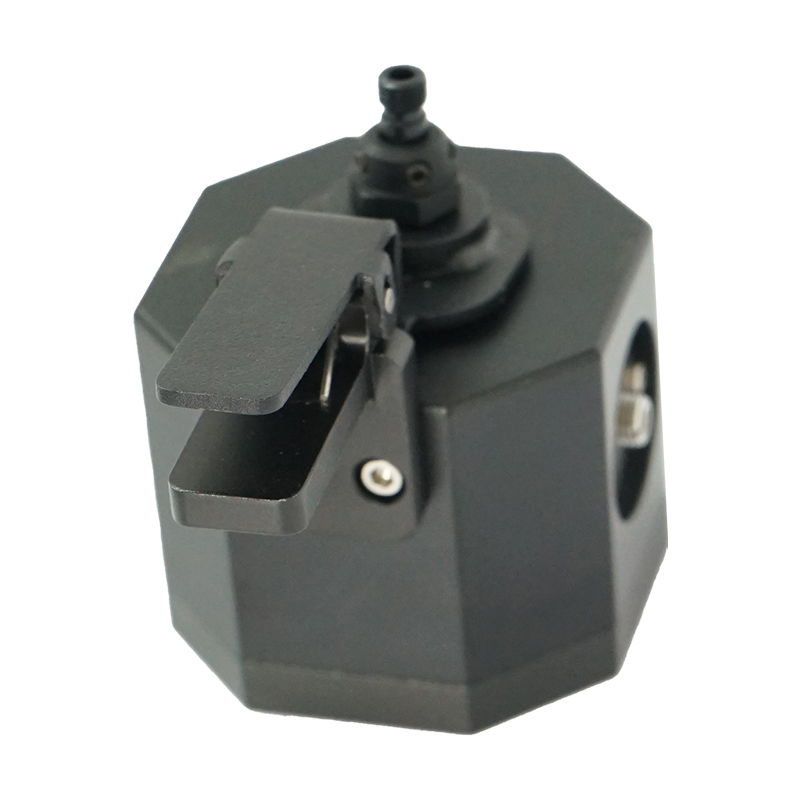

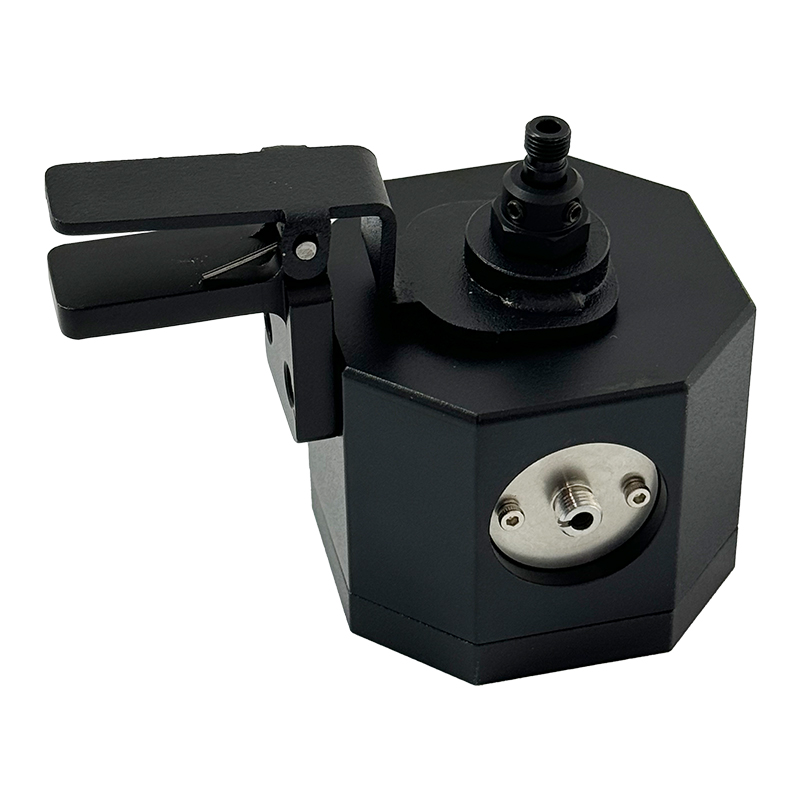

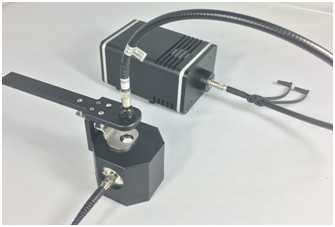

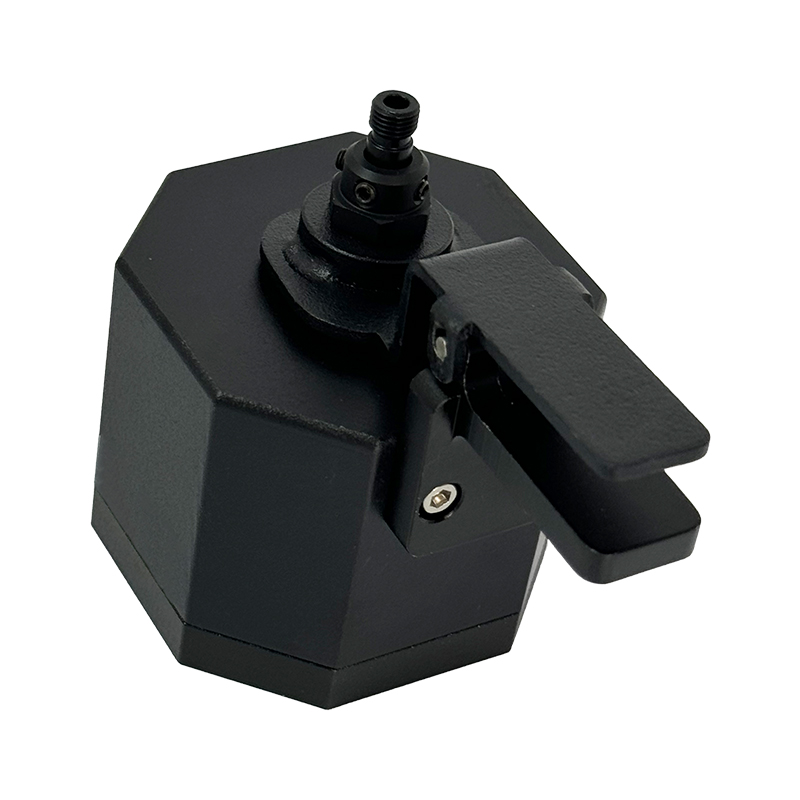

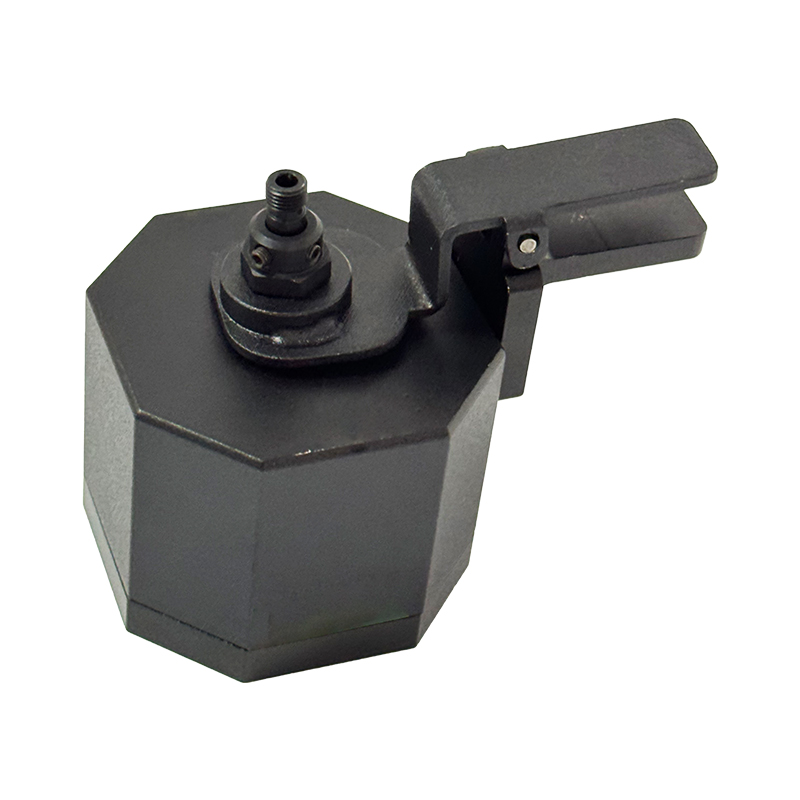

Transmission blade clip is used for measuring the transmission spectrum of thin slices, thin films and crop leaves, which needs to be matched with halogen tungsten light source (HL10000-mini), optical fiber and spectrometer.
◆ Simple to use: it conforms to the measurement scene and is simple to measure;
◆ High reflectivity: PTFE material is used internally, with visible end reflectivity 97%.
Specification |
|
| Item | Value |
| Product parameter | LC-38-INT |
| Internal material | Diffuse reflection of lambert material reflectivity～97% |
| Integration sphere diameter | 38mm |
| Optical fiber interface | SMA905 |
| The number of the fixed | M3,separation distance25mm |
| Size | 164x59x78mm |
| Weight | 300g |
